Pioneer Gen2 Power Meter System [SGY-PM910HL with Ultegra 6800 Left Crank]
Pioneer's SGY-PM910HL power sensor has been designed to help improve your training and performance. Giving accurate, reliable data in real time, iit has everything you need to start measuring your progress.
ABOUT PIONEER'S GEN 2 POWER METER:
FEATURES:
- World's first high-precision measurement of force magnitude and force direction, every 30° of rotation, for each leg

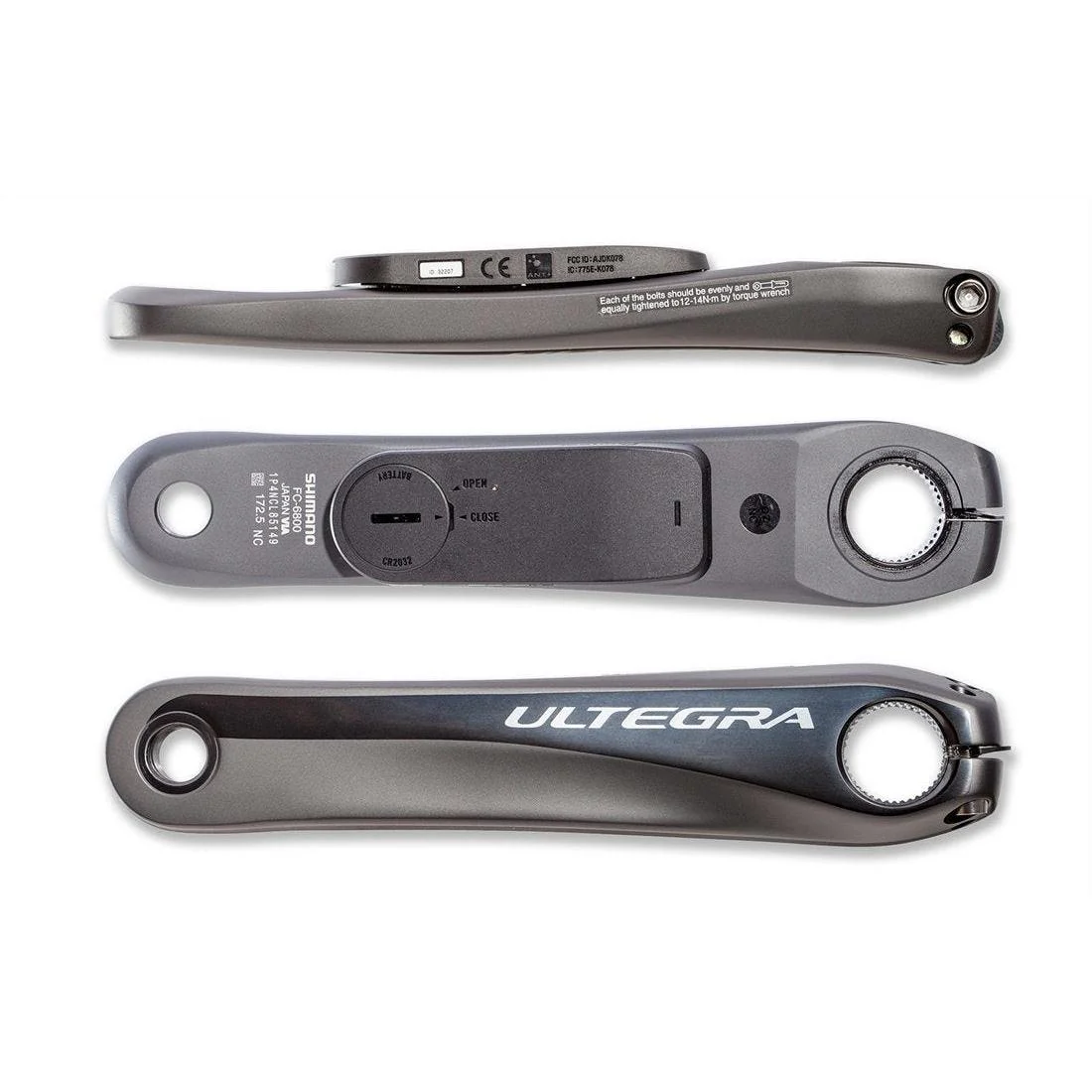

- Installed onto a Shimano Ultegra FC-6800 left crank
- Improved support for various cycle frames, with thin-profile sensors and two types of rotation detector magnets
- Simple maintenance operations for zero point calibration, battery replacement, and more
- Quick calibration to zero to preserve precision
- Easy battery replacement via opening the covers for the left crank sensor unit
- With water-resistance rated IPX6/IPX7 and capable of operation at temperatures from -10°C to 50°C, the SGY-PM910HL is accurate and reliable even under the harshest of conditions.
SPECIFICATIONS:
(sensor)
- Weight: 22g
- Dimensions: 92.5 mm(L) × 34.7 mm(W) × 8.6 mm(H)
- Water-resistance: Water resistance rating of IPX-6/IPX-7
- Communications system: ANT+
- Battery: CR2032
- Battery operating time: Approximately 180 hours (normal temperature)
- Guaranteed operational temperature range: -10 to 50°C
- Accessories: Instruction manual, warranty, battery (CR2032) (attached to sensor), ties x 4 (two for use with left magnet, two extra), cushion for arm type magnet attachment, patch type magnet base
| Included Crankset | Shimano FC-6800 "Ultegra" Crankset |
| Crank Arm Length Options (mm) | 165 / 170 / 172.5 / 175mm - Compact, Mid, & Standard |
| Chainring Options | Compact / Mid / Standard |
| Left and Right Arm Strain Guages | 165 / 170 / 172.5 / 175mm |
| 12-Point Force Direction Measurement | 50-34T / 52-36T / 53-39T |
| Dual Accelerometers per Crank Arm | Yes |
| Pioneer Pedaling Monitor Mode | For use with Pioneer Cycle Computers |
| ANT+™ Mode | For use with ANT+ Cycle Computers |
| Discrete L/R Zero Calibration Memory | Yes |
| Accuracy | +/- 2% |
| Chainring Exchangeable (Shimano only) | Yes |
$622.44
